12F MPO SC OM5 Breakout Cable

12F MPO SC OM5 Breakout Cable

12F MPO SC breakout cables yog dav siv nyob rau hauv high density fiber networks. Nws tau tsim tshwj xeeb rau kev ceev ethernet, cov ntaub ntawv chaw, fiber ntau channel thiab gigabit ethernet daim ntawv thov.

Xa kev nug
Ces
12F MPO SC OM5 Breakout Cable

12F MPO SC OM5 breakout cables muab los ntawm OPTICO muaj cov txiaj ntsig zoo ntawm kev ntseeg siab thiab kev hloov kho. Nrog rau kev nce ntawm cov kev xav tau ntawm kev sib txuas network thiab kev hloov kho ntawm lub network: los ntawm 40G mus rau 100G lossis txawm tias 400G, 12-core OM5 MPO MTP rau SC jumper kuj tau los ua. OPTICO txhawb nqa cov khoom lag luam, koj tuaj yeem tiv tauj peb kom qhia koj cov kev xav tau tshwj xeeb, xws li cov cores, ntev, xim, thiab lwm yam.

12F MPO SC OM5 breakout cables tuaj yeem npaj rau lub network hloov tshiab. MTP cables tuaj yeem siv rau kev sib txuas ncaj qha rau 40G-40G, 100G-100G, 200G-200G, 400G-400G, nrog rau kev hloov kho thiab kev sib txuas uplink. Nws yog ib qho kev hloov kho mus rau 40G / 100G / 120G siv 10G MTP cable system. Nws yog qhov kev xaiv pheej yig thiab txhim khu kev qha los txhim kho koj lub 10G network kom nrawm dua Ethernet. Tib lub sijhawm, kev sib txuas ntawm kev sib txuas ntawm cov khoom siv sib txawv ntawm qhov sib txawv kuj tuaj yeem pom tau los ntawm MTP cabling systems xws li 25G-100G, 50G-200G / 400G, 100G-400G, 200G{ {23}}G.

Connector AMPO Poj Niam / Txiv NeejConnector BSC UPC
Fiber homOM 5
Lub wavelength850/1300 nm
iav FiberCorning/YOFCUa haujlwm kub-10 degree rau 70 degree
MPO Connector IL＜ 0.25 dB (tsawg kawg)
＜ 0.35 dB (tsawg poob)
＜ 0.70 dB (tus qauv poob)		SC Connector ILTsawg dua lossis sib npaug rau 0.2 dB
MPO Connector RLNtau tshaj los yog sib npaug rau 20SC Connector RLNtau dua lossis sib npaug li 20 dB
Cable JacketLSZH/PVC/OFNPFiber suav12 Fibers

Nta

  • 100% ua ntej txiav thiab kuaj hauv lub Hoobkas kom ntseeg tau tias kev hloov pauv kev ua haujlwm

  • Ceev configuration thiab networking, txo lub sij hawm installation

  • Txhawb 40G thiab 100G network daim ntawv thov

  • Jacket khoom: LSZH, OFNR, OFNP muaj

  • Txhawb nqa mus txog 12F, 24F, 48F, 72F, 96F, 144F, customized khoom muaj

mpo polarity test.png

MPO Polarity Test

IL RL TEST.jpg

IL&RL Test

3D TEST.jpg

3D Test

Daim ntawv thov

mpo lc breakout application 2

10G rau 100G Direct Connectivity Cable

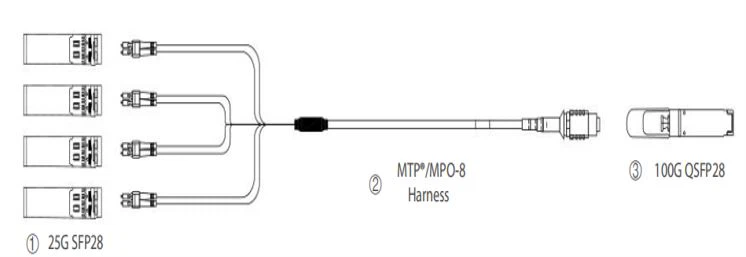

mpo lc breakout application 1

25G rau 100G Direct Connectivity Cable



Cov ntawv pov thawj (raws li GR-1435 tus qauv)

test report1.jpg

CTI: ntsuas kub

test report 2.jpg

CTI: poob test

test report 3.jpg

CTI: durability test

test report 4.jpg

CTI: ntsuas kub thiab av noo

test report 5.jpg

CTI: ntsuas kub

test report 6.jpg

CTI: poob test

test report 7.jpg

CTI: resistant rau dabtsi yog khoov

test report 8.jpg

CTI: sine vibration test
