1x4 Liab Fiber Hom PLC Splitter
1x4 PLC Splitter yog ib yam khoom siv hluav taws xob sib koom ua ke tsim los ntawm kev siv cov cuab yeej kho qhov muag kho qhov muag los ntawm cov khoom siv quartz substrate.
1x4 Liab Fiber Hom PLC Splitter
PLC yog ib qho khoom siv micro-optical raws li kev siv tshuab hluav taws xob hluav taws xob hauv hluav taws xob thiab muab cov khoom siv hluav taws xob qis qis nrog cov qauv me me thiab muaj kev ntseeg siab.
Bare splitter yog qhov tseem ceeb ntawm PLC fiber ntau splitter. Lawv tsis raug txiav nrog fiber ntau optic connectors thiab yuav spliced nrog optical fibers nyob rau hauv tis cables thiab poob cables. Bare Fiber PLC Splitters yog dav siv rau FTTH Passive Optical Network li passive optical splitters, xws li EPON (raws li EPON Splitter) thiab GPON (raws li GPON Splitter).
OPTICO 1x4 liab qab fiber ntau optical splitter muaj ib tug input davhlau ya nyob twg thiab plaub tso zis terminals. Nws muaj kev teeb tsa yooj yim tshaj plaws thiab ua haujlwm los faib ib qho teeb meem teeb pom kev zoo rau hauv plaub kab teeb thiab xa lawv los ntawm plaub tus neeg tso zis fiber ntau cables.
| Parameter | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 | |
| Ua haujlwm wavelength (nm) | 1260~1650 | |||||||
| Hom Fiber | G657A los yog customized | |||||||
| Hom Insertion Loss (dB) | 3.8 | 7.1 | 10.4 | 13.7 | 17.0 | 20.3 | 24.5 | |
| Loss Uniformity (Max) | 0.5 | 0.5 | 1.0 | 1.4 | 1.6 | 2.0 | 2.6 | |
| PDL (Max) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.8 | |
| Rov qab poob (dB) | Ntau dua lossis sib npaug li 55 | |||||||
| Kev taw qhia (dB) | Ntau dua lossis sib npaug li 55 | |||||||
| Wavelength Dependent Loss (dB) | Tsawg dua lossis sib npaug rau 0.3 | |||||||
| Ua haujlwm kub (degree) | -40~+85 | |||||||
Internal qauv ntawm 1x4
Sib npaug sib faib ib lub teeb liab input rau hauv plaub qhov chaw tso zis
Tsis muaj connector ntawm liab qab fiber ntau xaus
Dav ua haujlwm wavelength ntawm 1260 ~ 1650nm
Insertion poob Tsawg dua lossis sib npaug rau 7.1, Rov qab poob Ntau dua lossis sib npaug rau 55dB
Compact tsim: tuaj yeem ntsia ncaj qha rau hauv ntau lub thawv hloov chaw, siv qhov chaw me me.
Kev ruaj ntseg ib puag ncig siab: Kub kub ntawm -40 degree mus rau +85 degree
Fiber Optical Communication Systems
Optical Fiber CATV

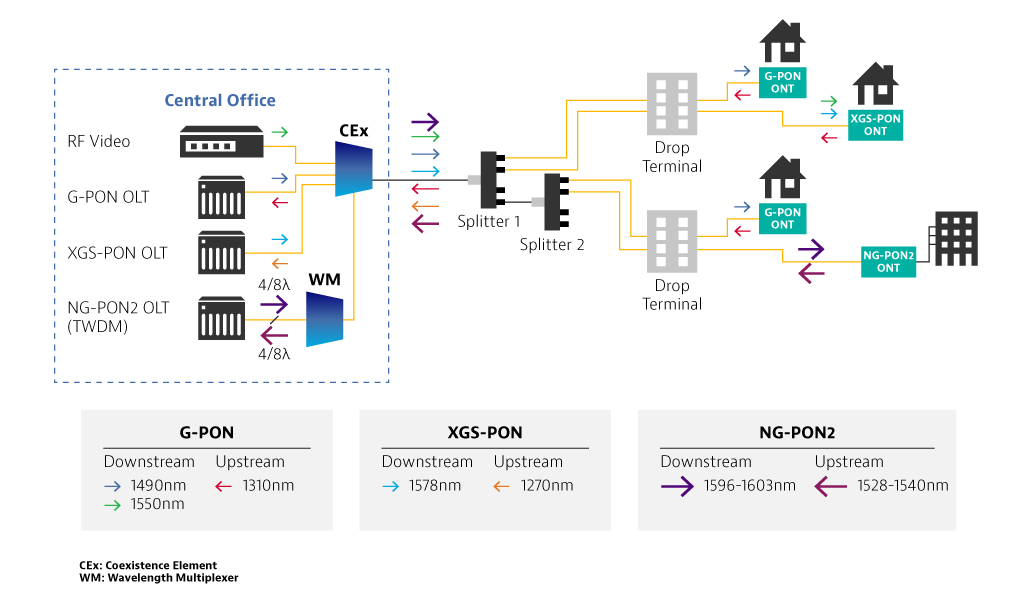

Passive Optical Network (PON)
Fiber Optic Amplifiers
Fiber Optic Access Networks / LAN
Saib xyuas Systems
Optical Fiber Sensor
GPON & FTTH daim ntawv thov
CATV Link
FTTH
PON
